High Quality Pure Copper Conductors CL3P Plenum Cable

Brand Name : WCH Cable

Model Number : CL3P

Certification : UL, Cul

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD 0.22 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Type : Communication Cable

UL Style : CL3P

Feature : Best Flame Retardant FT6

Conductor : Pure Copper Wire

Rated Temperature : 60, 75, 90, 105 degree

Rated Voltage : 300V

Contact Now

High Quality Pure Copper Conductors CL3P Plenum Cable

Conductor: High purity copper wire, tinned or bare, stranded or solid.

Insulation Material: high quality PVC, PP, PE, FEP.

Jacket Material: Special PVC / Polyvinyl Chloride.

Screen Shield: Aluminum foil, spiral shield, copper braiding, optional.

Approval Type: UL, Cul.

Rated Temperature: 60, 75, 90, or 105 Celsius degrees.

Rated Voltage: 300V.

Flammability: Passes UL CL3P, and CUL FT6 Plenum flame test.

Application: Communication and signal control system.

UL Style Core Conductor Insulation Thickness Nominal Diameter Drain Wire Overall Shield Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm NO./mm mm Coverage mm mm Ω/KM
CL3P 1P 24 7/0.20 0.23 1.06 11/0.16 AL/MY 65% 0.46 4.70 94.20
2C 24 7/0.20 0.23 1.06 94.20
CL3P 1P 24 7/0.20 0.23 1.06 17/0.16 AL/MY 65% 0.46 4.90 94.20
2C 22 7/0.254 0.23 1.25 59.40
CL3P 1P 24 7/0.20 0.23 1.06 21/0.178 AL/MY 65% 0.46 5.10 94.20
2C 20 7/0.32 0.23 1.45 36.70
CL3P 1P 24 7/0.20 0.23 1.06 / / / 0.46 3.50 87.50
CL3P 2P 24 7/0.20 0.23 1.06 / / / 0.46 4.40 87.50
CL3P 3P 24 7/0.20 0.23 1.06 / / / 0.46 5.20 87.50
CL3P 4P 24 7/0.20 0.23 1.06 / / / 0.46 5.70 87.50
CL3P 1P 24 7/0.20 0.23 1.06 7/0.20 AL/MY 65% 0.46 4.00 87.50
CL3P 2P 24 7/0.20 0.23 1.06 7/0.20 AL/MY 65% 0.46 5.40 87.50
CL3P 3P 24 7/0.20 0.23 1.06 7/0.20 AL/MY 65% 0.46 5.80 87.50
CL3P 4P 24 7/0.20 0.23 1.06 7/0.20 AL/MY 65% 0.46 6.20 87.50

High Quality Pure Copper Conductors CL3P Plenum Cable


Wholesale High Quality Pure Copper Conductors CL3P Plenum Cable from china suppliers

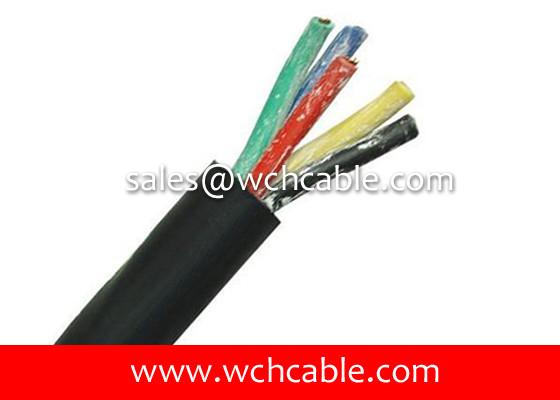

High Quality Pure Copper Conductors CL3P Plenum Cable Images
