UL20376 Easy Cold Bending Flexible TPU Cable 105C 600V

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL20376 Easy Cold Bending Flexible TPU Cable 105C 600V

Brand Name : WCH Cable

Model Number : UL20376

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 meters

Price : USD0.235 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1,000,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL20376

Conductor Material : Highly pure copper wire strands

Rated Temperature : 105°C

Insulation material : AWM verified materials

Rated Voltage : 600V

Jacket Material : Quality Thermoplastic TPU

Feature : Easy cold bending

Jacket Thickness : 45 mils minimum

Contact Now

UL20376 Easy Cold Bending Flexible TPU Cable 105C 600V

TPU cable style number: UL20376;

TPU cable rated temperature: 105°C;

TPU cable rated voltage: 600V;

Screened shield: foil shielded, copper wires wrapped or braided, optional.

Application: electronic appliances external interconnection.

Style Number Core Quantity Conductor Gauge Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20376 2C 30 11/0.08 0.76 1.90 1.15 6.70 381.00
2C 28 16/0.08 0.76 2.00 1.15 7.00 239.00
2C 26 26/0.08 0.76 2.10 1.15 7.10 150.00
2C 24 41/0.08 0.76 2.20 1.15 7.30 94.20
2C 22 65/0.08 0.76 2.40 1.15 7.70 59.40
2C 20 104/0.08 0.76 2.50 1.15 8.10 36.70
2C 18 164/0.08 0.76 2.80 1.15 8.70 23.20
2C 16 265/0.08 0.76 3.10 1.15 10.90 14.60
3C 30 11/0.08 0.76 1.90 1.15 8.60 381.00
3C 28 16/0.08 0.76 2.00 1.15 8.80 239.00
3C 26 26/0.08 0.76 2.10 1.15 9.00 150.00
3C 24 41/0.08 0.76 2.20 1.15 9.20 94.20
3C 22 65/0.08 0.76 2.40 1.15 9.60 59.40
3C 20 104/0.08 0.76 2.50 1.15 10.10 36.70
3C 18 164/0.08 0.76 2.80 1.15 10.70 23.20
4C 30 11/0.08 0.76 1.90 1.15 8.80 381.00
4C 28 16/0.08 0.76 2.00 1.15 9.00 239.00
4C 26 26/0.08 0.76 2.10 1.15 9.30 150.00
4C 24 41/0.08 0.76 2.20 1.15 9.60 94.20
4C 22 65/0.08 0.76 2.40 1.15 10.00 59.40
4C 20 104/0.08 0.76 2.50 1.15 10.50 36.70
5C 30 11/0.08 0.76 1.90 1.15 9.10 381.00
5C 28 16/0.08 0.76 2.00 1.15 9.40 239.00
5C 26 26/0.08 0.76 2.10 1.15 9.50 150.00
5C 24 41/0.08 0.76 2.20 1.15 9.90 94.20
5C 22 65/0.08 0.76 2.40 1.15 10.60 59.40
6C 30 11/0.08 0.76 1.90 1.15 9.50 381.00
6C 28 16/0.08 0.76 2.00 1.15 9.80 239.00
6C 26 26/0.08 0.76 2.10 1.15 10.10 150.00
6C 24 41/0.08 0.76 2.20 1.15 10.40 94.20

UL20376 Easy Cold Bending Flexible TPU Cable 105C 600V

Tag: UL20376, cable, tpu cable


Wholesale UL20376 Easy Cold Bending Flexible TPU Cable 105C 600V from china suppliers

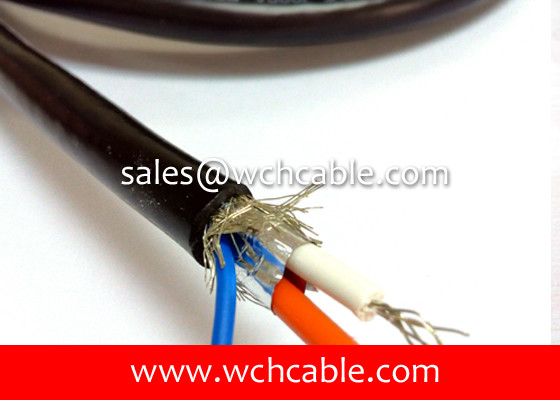

UL20376 Easy Cold Bending Flexible TPU Cable 105C 600V Images
