600V TPU Cable UL20234, UL20352, UL20939, UL20940, UL20948, UL20979, UL21029, UL21060, UL21127, UL21140, UL21223

Name: 600V TPU Cable UL20234 UL20352 UL20939 UL20940 UL20948 UL20979 UL21029 UL21060 UL21127 UL21140 UL21223
Brand: WCH Cable
Price: 0.15 USD

Wholesale 600V TPU Cable UL20234, UL20352, UL20939, UL20940, UL20948, UL20979, UL21029, UL21060, UL21127, UL21140, UL21223 from china suppliers

Brand Name : WCH Cable

Model Number : UL20234

Certification : UL, Cul, AWM, CSA

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300,000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per spool / reel

Tyle : TPU Cable

Style Number1 : UL20234, UL20352, UL20939,

Rated Voltage : 600V

Style Number2 : UL20940, UL20948, UL20979,

Rated Temperature : 80C Degrees

Style Number3 : UL21029, UL21060, UL21127

Sheath Material : Thermoplastic TPU

Style Number4 : UL21140, UL21223

Contact Now

Product Structure:

1. Tinned stranded or bare annealed copper conductor.

2. Insulation material: PP, PVC, SR-PVC, HDPE, FR-PE

3. Rated temperature: 80C.

4. Rated voltage: 600V.

5. Uniform insulation wall thickness for easy stripping and cutting.

6. UL VW-1 and CSA FT-1/FT-2 vertical flame test verified.

7. Jacket material: Thermoplastic Polyurethane PUR / TPU / PU.

8. Standard executed: Appliance Wiring Material UL 758

9. 100% RoHS compliant.

Application:

Internal wiring or external interconnection of appliances or electronic equipment.

Available UL approval style number:

Style#	Temperature	Voltage	Sheath Material Type	Brand
UL 20234	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 20352	60	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 20939	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 20940	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 20948	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 20979	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21029	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21060	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21127	75	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21140	60	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21223	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21238	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21294	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21315	60	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21325	60	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21329	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable
UL 21573	80	600	Thermoplastic Polyurethane PU / PUR / TPU	WCH Cable

Parameters:

UL Style	Cores	Conductor		Insulation Thickness	Nom.Dia	Jacket Thickness	Overall Diameter	Conductor Resistance
UL Style	Cores	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20234	2C	30	7/0.100	0.76	1.90	1.15	6.20	381.00
		28	7/0.127	0.76	2.00	1.15	6.40	239.00
		26	7/0.16	0.76	2.10	1.15	6.60	150.00
		24	11/0.16	0.76	2.20	1.15	6.80	94.20
		22	17/0.16	0.76	2.40	1.15	7.20	59.40
		20	21/0.178	0.76	2.50	1.15	7.40	36.70
		18	34/0.178	0.76	2.80	1.15	8.00	23.20
		16	26/0.25	0.76	3.10	1.15	8.50	14.60
	3C	30	7/0.100	0.76	1.90	1.15	6.40	381.00
		28	7/0.127	0.76	2.00	1.15	6.60	239.00
		26	7/0.16	0.76	2.10	1.15	6.80	150.00
		24	11/0.16	0.76	2.20	1.15	7.00	94.20
		22	17/0.16	0.76	2.40	1.15	7.60	59.40
		20	21/0.178	0.76	2.50	1.15	7.80	36.70
		18	34/0.178	0.76	2.80	1.15	8.50	23.20
	4C	30	7/0.100	0.76	1.90	1.15	7.00	381.00
		28	7/0.127	0.76	2.00	1.15	7.20	239.00
		26	7/0.16	0.76	2.10	1.15	7.40	150.00
		24	11/0.16	0.76	2.20	1.15	7.60	94.20
		22	17/0.16	0.76	2.40	1.15	8.20	59.40
		20	21/0.178	0.76	2.50	1.15	8.50	36.70
	5C	30	7/0.100	0.76	1.90	1.15	7.60	381.00
		28	7/0.127	0.76	2.00	1.15	7.80	239.00
		26	7/0.16	0.76	2.10	1.15	8.00	150.00
		24	11/0.16	0.76	2.20	1.15	8.40	94.20
		22	17/0.16	0.76	2.40	1.15	8.80	59.40
	6C	30	7/0.100	0.76	1.90	1.15	8.00	381.00
		28	7/0.127	0.76	2.00	1.15	8.40	239.00
		26	7/0.16	0.76	2.10	1.15	8.60	150.00
		24	11/0.16	0.76	2.20	1.15	9.00	94.20

600V TPU Cable UL20234, UL20352, UL20939, UL20940, UL20948, UL20979, UL21029, UL21060, UL21127, UL21140, UL21223

Tag: cable, tpu cable

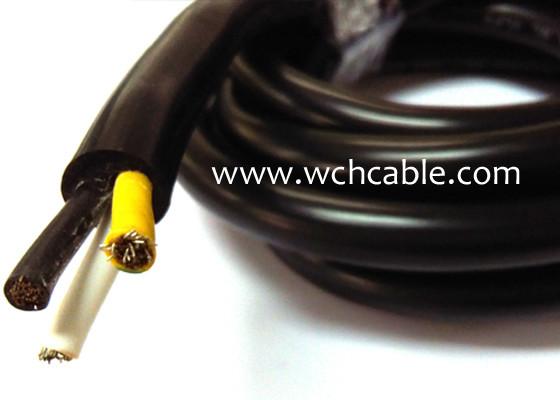

600V TPU Cable UL20234, UL20352, UL20939, UL20940, UL20948, UL20979, UL21029, UL21060, UL21127, UL21140, UL21223 Images
